A windmill is one of the most energy efficient and ingenious ways ever devised to pump water from under the ground. A windmill harnesses the free and renewable energy of the wind and uses that energy to lift underground water to the surface for farm and ranch uses.

  • Windmills for Agriculture use

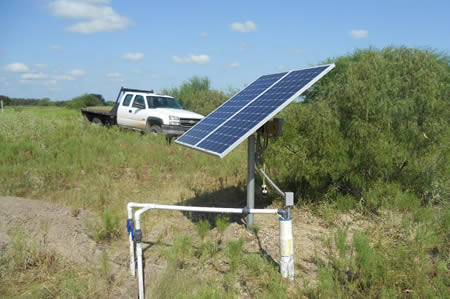

  • Off grid solar water wells

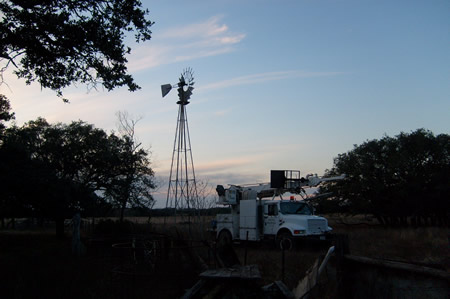

  • Windmill repairs and installation
  • Aermotor Windmills

Because windmills are so efficient and durable, the basic design hasn't changed in almost 150 years. The secret lies in the way a windmill harnesses the wind's energy to power an ingenious water pump located deep underground.

Farm and Ranch Windmills

The power of the wind is captured by the windmill and harnessed in two steps. Each step is easy to identify by simply observing a windmill in action.

First, notice how the fan turns. A windmill captures the energy of the wind with the large, circular fan, or "wheel", located at the top of the tower. When the wind blows, the fan rotates. This turning motion is so commonplace that it's easily taken for granted. But don't. This is where the free energy of the wind is captured.

Second, look just below the turning wheel and notice a long rod moving up and down. This "sucker rod", is powered by the windmill's motor. This windmill motor is a unique set of mechanical gears that converts the rotary motion of the wheel into a reciprocating (up and down) motion that powers the cylinder pump located deep underground.

Water Wells

A water well is a small-diameter hole drilled into the earth's crust that fills up with water. As the well is drilled, it passes through various underground layers of sand and gravel, and extends into an aquifer, or underground water-bearing formation.

Once the well is drilled to the proper depth, the well wall is reinforced and perforated to allow water from the surrounding aquifer to seep into the well. Gravity causes the water to rise to the level of the underground water table.

A sealed "drop pipe" is then inserted into the well until its lower end is fully immersed in the well water.

Agricultural Wind Power Systems
Aermotor Wind Generator

Direct drive permanent magnet alternators designed for low speed renewable energy applications and integrated with Aermotor turbines and towers.

The PMA generates three phase variable AC power which is sent through an electrical disconnect to a rectifier which converts AC to DC power. In grid tie operation,DC power is sent to an inverter and output to the grid.

‚Äč

For off grid application, DC power from the rectifier is sent to a charge controller in order to charge a battery system. An inverter is connected to the battery system and converts DC battery voltage to AC and sent through a disconnect to a critical service panel.

For more information visit: https://www.spiritpma.com
